Product Description
Frame and Impeller: Plastic (94V-0),PBT
Bearing Type: Sleeve bearing&Ball bearing
Function Range: FG IP58
Leadwire: Red Wire Positive(+),Black Wire Negative(-)
Operating Voltage: 5V 12V
Tempetature Range: –20℃ to +70℃
Motor: Impedance Protected and Reverse Polarity Protected

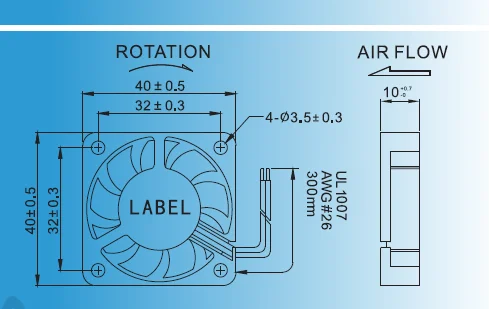

Dismension
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX4010AB(S/Y)H5 | B.S.Y | 5 | 3.5-5.5 | 0.22 | 1.10 | 7000 | 7.50 | 0.21 | 0.15 | 36.87 | 32.00 | 16.00 |
| MX4010AB(S/Y)M5 | B.S.Y | 5 | 3.5-5.5 | 0.14 | 0.70 | 6000 | 6.42 | 0.18 | 0.12 | 29.42 | 27.00 | 16.00 |
| MX4010AB(S/Y)L5 | B.S.Y | 5 | 3.5-5.5 | 0.10 | 0.50 | 5000 | 5.54 | 0.15 | 0.09 | 21.67 | 24.00 | 16.00 |
| MX4010AB(S/Y)D5 | B.S.Y | 5 | 3.5-5.5 | 0.08 | 0.40 | 4000 | 4.39 | 0.12 | 0.06 | 14.32 | 21.00 | 16.00 |
| MX4010AB(S/Y)H1 | B.S.Y | 12 | 7.0-13.8 | 0.15 | 1.80 | 7000 | 7.50 | 0.21 | 0.15 | 36.87 | 32.00 | 16.00 |
| MX4010AB(S/Y)M1 | B.S.Y | 12 | 7.0-13.8 | 0.08 | 0.96 | 6000 | 6.42 | 0.18 | 0.12 | 29.42 | 27.00 | 16.00 |
| MX4010AB(S/Y)L1 | B.S.Y | 12 | 7.0-13.8 | 0.06 | 0.72 | 5000 | 5.54 | 0.15 | 0.09 | 21.67 | 24.00 | 16.00 |
| MX4010AB(S/Y)D1 | B.S.Y | 12 | 7.0-13.8 | 0.04 | 0.48 | 4000 | 4.39 | 0.12 | 0.06 | 14.32 | 21.00 | 16.00 |
| MX4010AB(S/Y)H2 | B.S.Y | 24 | 14.0-27.6 | 0.07 | 1.68 | 7000 | 7.50 | 0.21 | 0.15 | 36.87 | 32.00 | 16.00 |
| MX4010AB(S/Y)M2 | B.S.Y | 24 | 14.0-27.6 | 0.05 | 1.20 | 6000 | 6.42 | 0.18 | 0.12 | 29.42 | 27.00 | 16.00 |
| MX4010AB(S/Y)L2 | B.S.Y | 24 | 14.0-27.6 | 0.04 | 0.96 | 5000 | 5.54 | 0.15 | 0.09 | 21.67 | 24.00 | 16.00 |
