120mm * 25mm air blowers fans with PWM FG 12 volt 24v dc motor centrifugal fan for air purifier
♦ If you are interested in this fan, you can click on the picture to purchase
| Item | Specification/Condition |
| 1 | Mode1 No. | MX12025GBH1 |
| 2 | Outline. Dimension | 120*25mm |
| 3 | Operating Voltage | DC 12V |
| 4 | Rated .voltage | DC 12V |
| 5 | Starting Voltage | DC ≤7.0V on/off |
| 6 | Rated current | 1.9A(MAX1.9A) | a. (Rated .voltage) b.25℃ 65% RH c.After testing for 5 minutes |
| 7 | Power consumption | 21.6W(MAX0.48W) |
| 8 | Speed | 4800±10%RPM |
| 9 | Max Airflow | 120CFM | a. Rated .voltage) b. AMCA(Standard) C. Rated current |
| Air .Static Pressure | 50mmH2O |
| 10 | Noise Level | 52.25dB | a. Rated Voltage b. Non-Echo Chamber c. Standard:CNS 8753 / ISO 3744 d. Test Condition :ISO 7779 e. Distance: 1.0 M |
| 11 | Life expectancy | 50000Hrs 25℃ | MTTF (Mean Time To Failure) Conf. Level 90%) |
| 12 | No.of.Blade | round |
| 13 | No.of.Pole | 4 pole |
| 14 | Rotating Direction | Counterclockwise |
| 15 | Lock Protection | YES |
| 16 | Polarity Protection | YES |
| 17 | Overvoltage protection | NO |
| 18 | Overcurrent protection | NO |
| 19 | FG | NO |
| 20 | PWM function | YES |

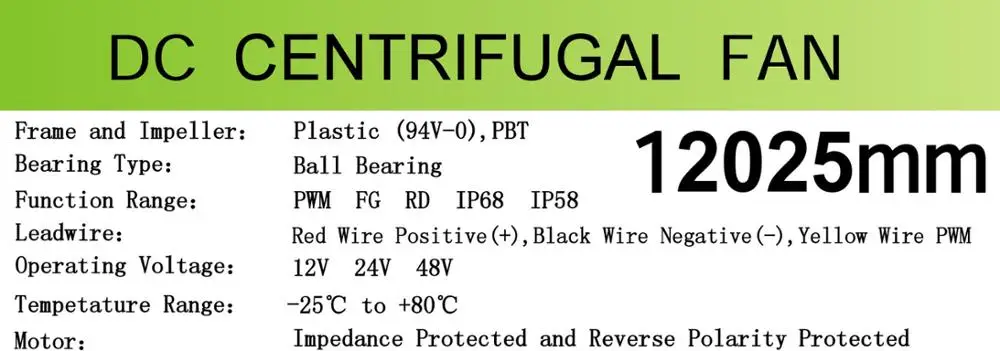

General specification

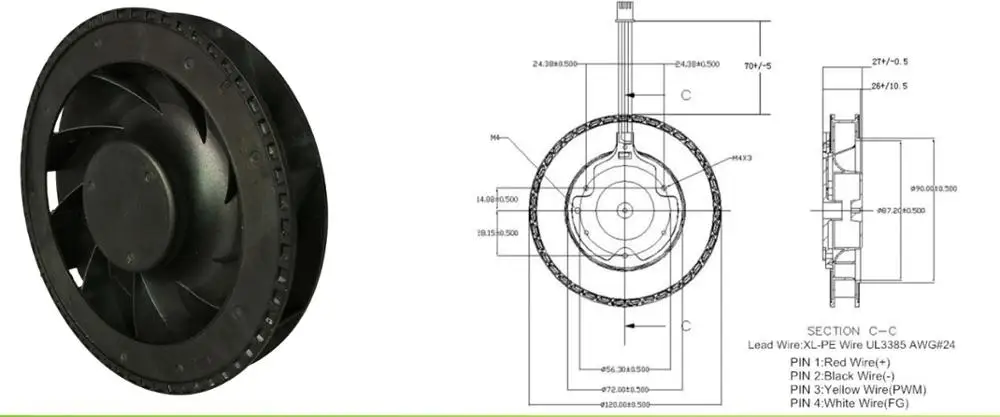

Dimensions

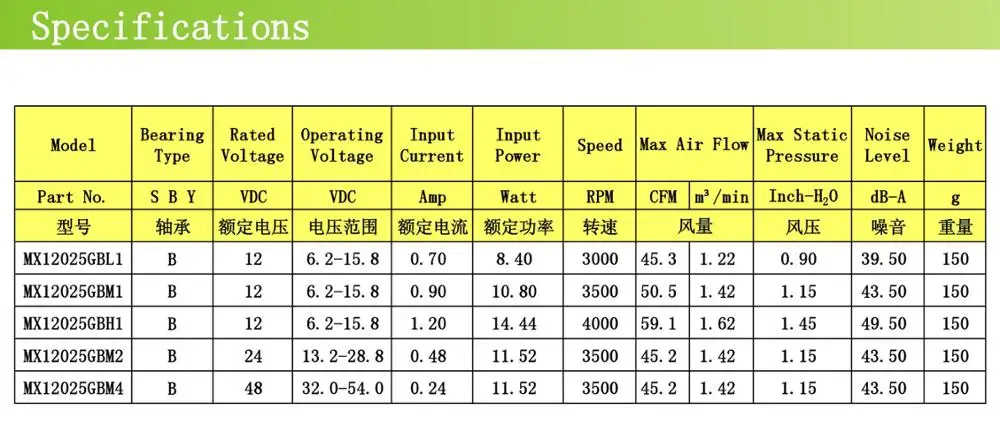

Specifications

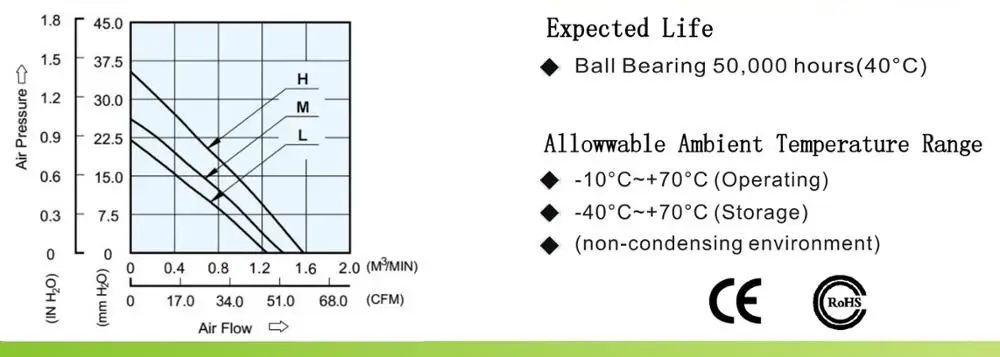

Curve
>> If you want another rpm or voltage or special functionm please contact with us directly.
>> Products have a detail in the approval sheet.
>> Specifications are subject to change without notice
>> The size , voltage, power & speed can be made according to your requirements!
>> could be made with waterproof function
>> We're professional manufacturer of cooling fans & motors for 11 years' experience
>> On time delivery
Application
Topfan’s fan products are utilized by all type of machines which required heat reduction systems , such as UPS systems ; Telecommunication equipments ; Ventilating systems ; LED Digital signage ; Disports / exercise equipments ; Medical instruments .
Factory
Package
We offer 30 , 000 hours warranty for sleeve bearing fans , 50 , 000 hours
warranty for ball bearing fans .
We can also provide fans with longer use times
Any more information,pls feel free to contact Molly
Thanks very much!
