8V DC Centrifugal Blower Fan For Household Sweeper

Name: 8V DC Centrifugal Blower Fan For Household Sweeper
Brand: MX/OEM/ODM
Price: 7.9 USD

Wholesale 8V DC Centrifugal Blower Fan For Household Sweeper from china suppliers

Brand Name : MX/OEM/ODM

Model Number : MX7146GBH8

Certification : CE/ROHS

Place of Origin : CHINA

MOQ : 500PCS

Price : usd7.9-19.9

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs/week

Delivery Time : 7-14 working days

Packaging Details : CARTON

Color : black

Air Flow : 32.5CMF

Voltage : 8V

Speed : 14000rpm

Pressure : 950Pa

Application : Home Appliance

Contact Now

Sweeper cooling fan, blower fan for household sweeper, 8V DC centrifugal blower 71*46mm

Product Description

A: General Specification

ITEM		Specification Condition
01	Part No.
02	Dimension	71×46mm
03	Rated Voltage	8VDC
04	Start-up Voltage	6VDC
05	Operating Voltage	6~10VDC		a. Rated Voltage
06	Rated Speed	14000rpm	±10%	b. 25℃
07	Rated Current	1.35A	±10%	c. 65% RH
08	Rated Power	10.8W	±10%	d. Measured after 5 Mins
09	Max Airflow	32.5	CFM	a. PQ Measurement Apparatus : (LW9266-SR) b. Standard : AMCA c. Rated Voltage d. Rated Current
10	Max Static Pressure	950	Pa
11	Life Expectancy	8000hrs at 40℃		a.L10 at Conf. Level 90% b. Rated Voltage
12	Noise Level	61.5B		a. Rated Voltage b. Non-Echo Chamber c. Standard:CNS 8753/ISO3744 d.Test Condition:ISO 7779 e. Distance: 1.0M
13	No. of Pole	4 Poles
14	Rotating Direction	Clockwise(From Label side)

B: (Main Materials, Parts Specification):

Bearing	◊ (Dual Ball Bearing)						√		(Sleeve Bearing)
Frame	√	PBT of UL94V-0.					◊		Die-cast Aluminum Alloy
Impeller	√	PBT of UL94V-0.					◊		Steel
Bobbin	PBT of UL94V-0.
Lead Wire	√		Red(+)	√	Black(-)	◊		Blue(PWM)		UL007 24#
	◊		Yellow(FG)	◊	White(RD)	2 wires 370±10mm
Connector	2.0-2P
Tube	No

C: Electrical Specification:

D.Environmental Specification

ITEM		Specification. Condition
01	Operating Temp. Range	Temperature	: -10 ℃ ~70℃
		Humidity	:15%~ 90% RH (Frost Eliminated)
02	Storage Temp. Range	Temperature	: -40 ℃ ~70℃
		Humidity	:15%~ 90% RH (Frost Eliminated)

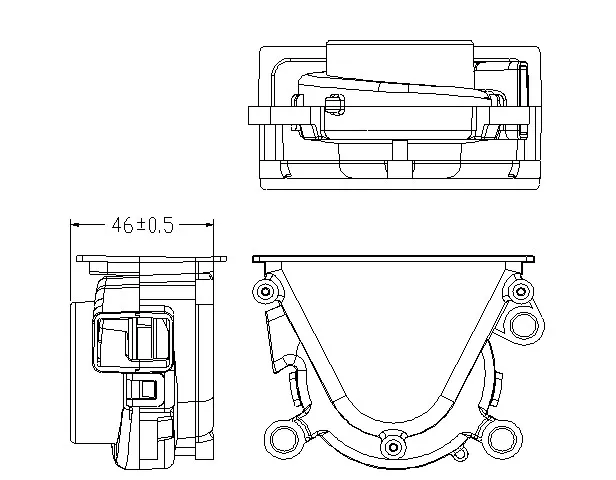

E: Outline Dimension

8V DC Centrifugal Blower Fan For Household Sweeper

Packaging & Shipping

You could choose the shipping way by yourself .

You could choose the freight forward company by yourself .

We could arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1 . Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

Our Services

1.We are professtional and experienced manufature of Axial Fan in China.

2.Customization, the size and functions of fan manufacture according to your demands.

3.We’ll reply you in 24 hours after you send inquiry to us.

4.We holding the principle of good faith to manage our company for 25 years.

contact information:

Molly

WhatsApp/Tel/Skype:+86 152 7034 4076

Product Tags:

8V DC Centrifugal Blower Fan

32.5CMF Centrifugal Blower Fan

14000rpm centrifugal air blower

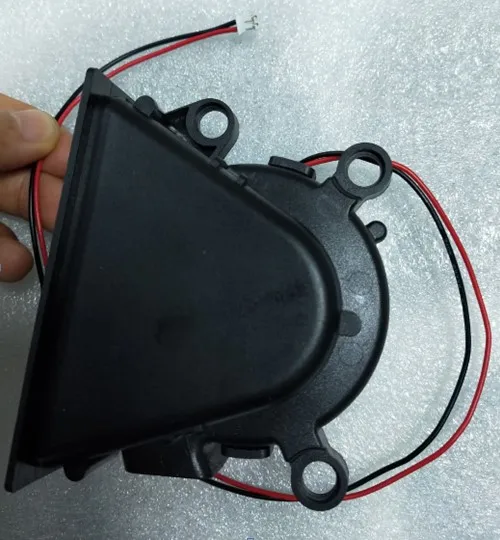

8V DC Centrifugal Blower Fan For Household Sweeper Images
